DL01 Series
LED Down Light
Description

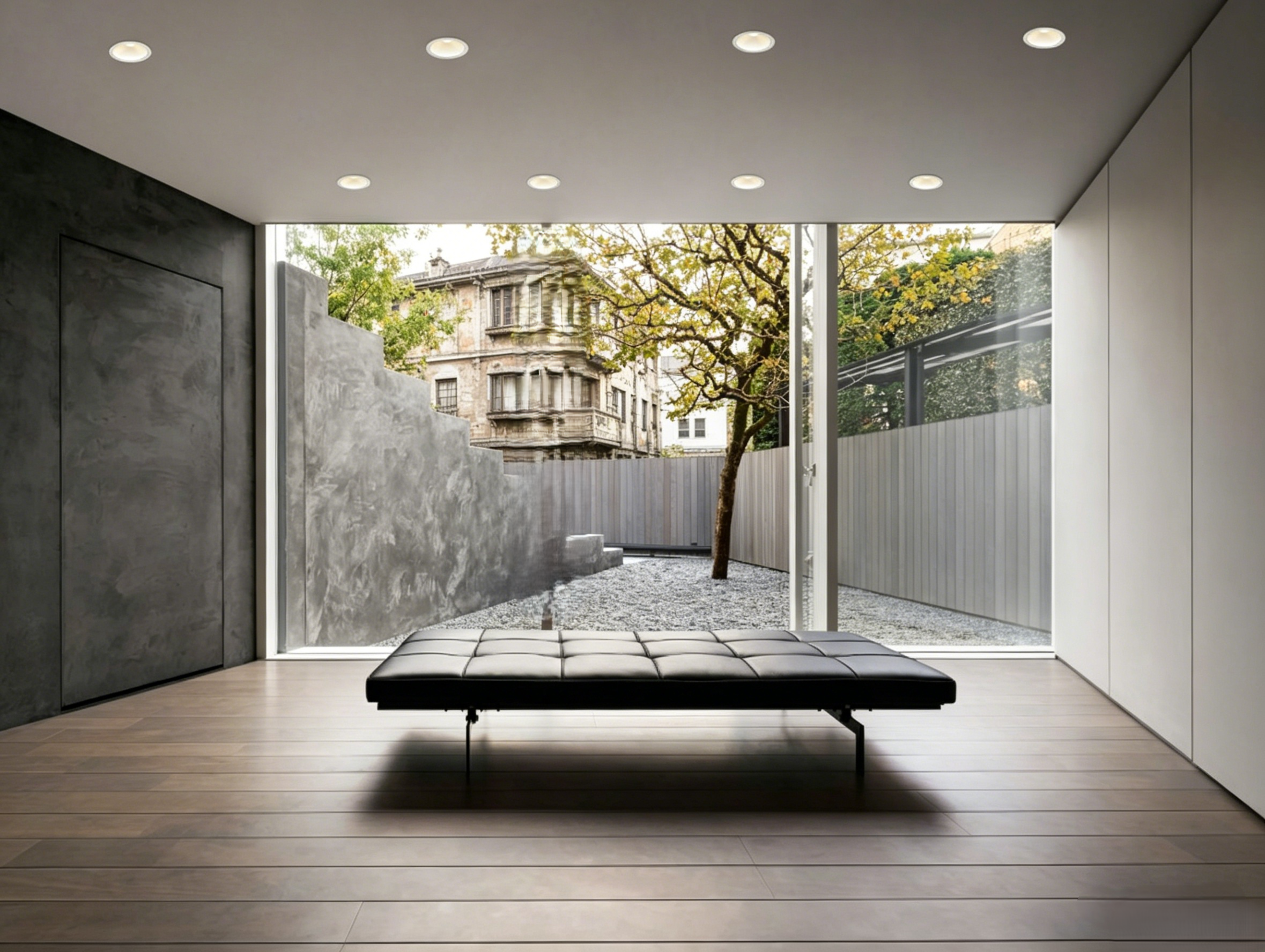

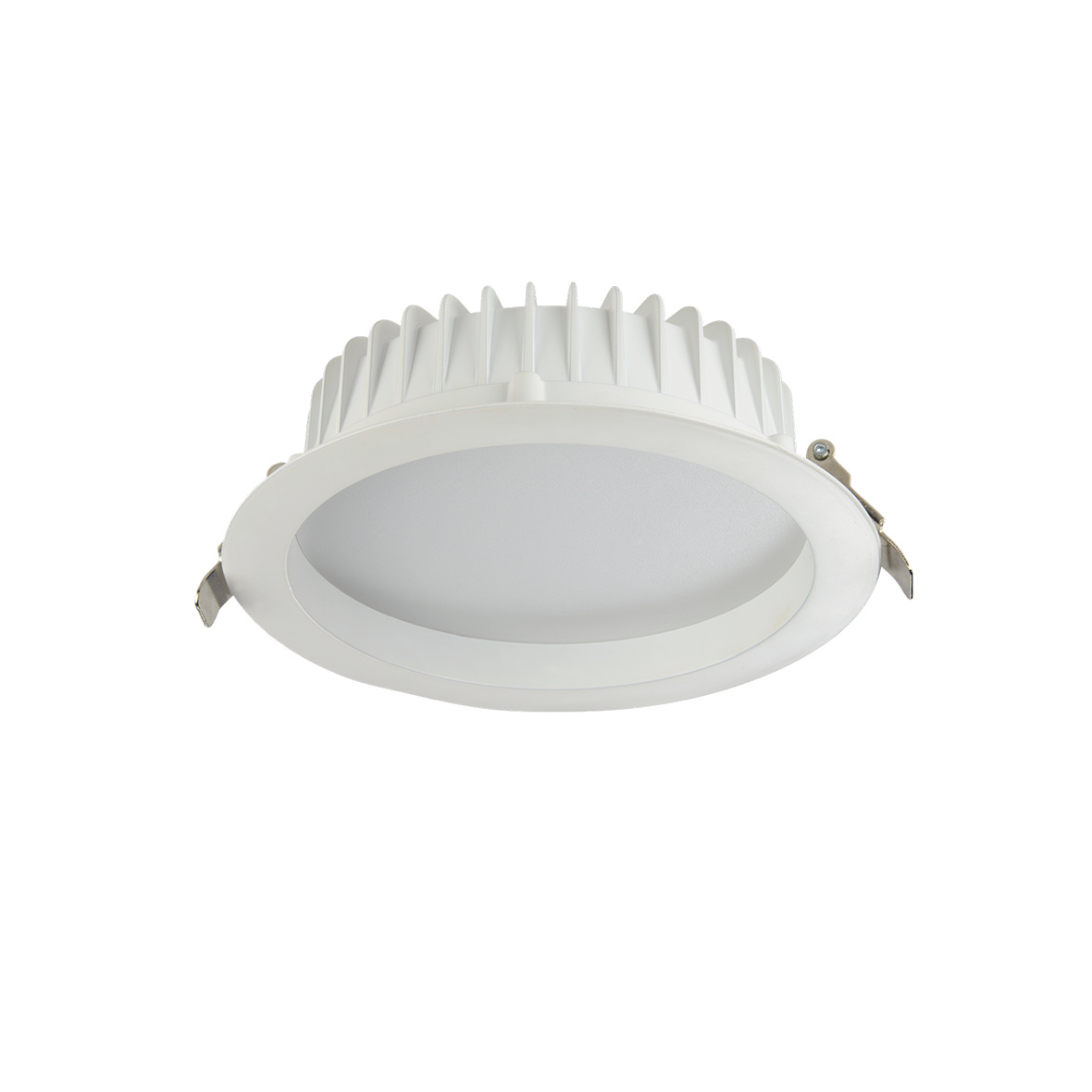

The HDL01 Series LED downlights feature a luminous efficacy of up to 100 lm/W and are available in 13W, 15W, 19W, and 24W options. They offer a color rendering index of Ra70, Ra80, or Ra90, with 4 selectable color temperatures (2700K, 3000K, 4000K, 5000K). Crafted from high-quality die-cast aluminum for excellent heat dissipation, these downlights deliver a 100° wide beam angle for uniform illumination, making them ideal for offices, commercial spaces, residential areas, and other indoor applications. With a wide operating temperature range of -30°C to +40°C, IP40 dust protection, and optional 0-10V/Triac/Dali dimming, they are certified with CE and CB for global market compliance.
The HDL01 Series LED downlights deliver energy-efficient, uniform illumination for indoor commercial and residential spaces
- 100LM/W High Efficacy, Energy Saving
- IP44 Wet Location
- 50,000hrs Long Lifespan, Low Maintenance
- 3 Years Global Warranty, Peace of Mind
Performance parameters
| Parameter | HDL01-13 | HDL01-15 | HDL01-19 | HDL01-24 |
|---|---|---|---|---|
| Max Power | 13W | 15W | 19W | 24W |
| LED Source | SMD2835*72PCS | SMD2835*84PCS | SMD2835*112PCS | SMD2835*140PCS |

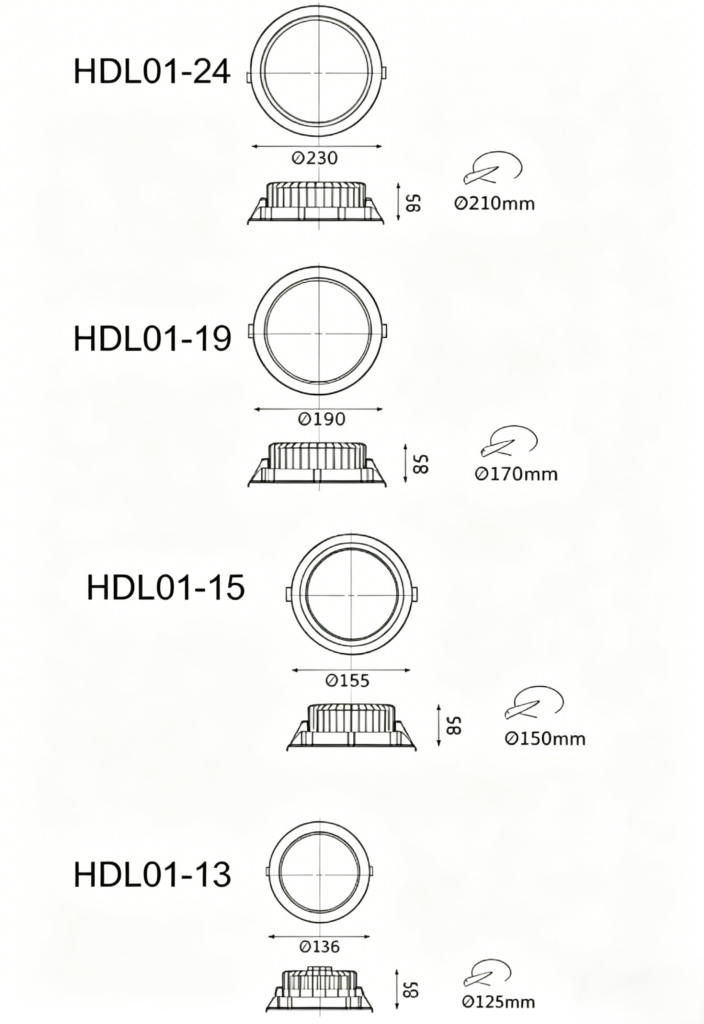

| Cutout Size | Ø125mm | Ø150mm | Ø170mm | Ø210mm |

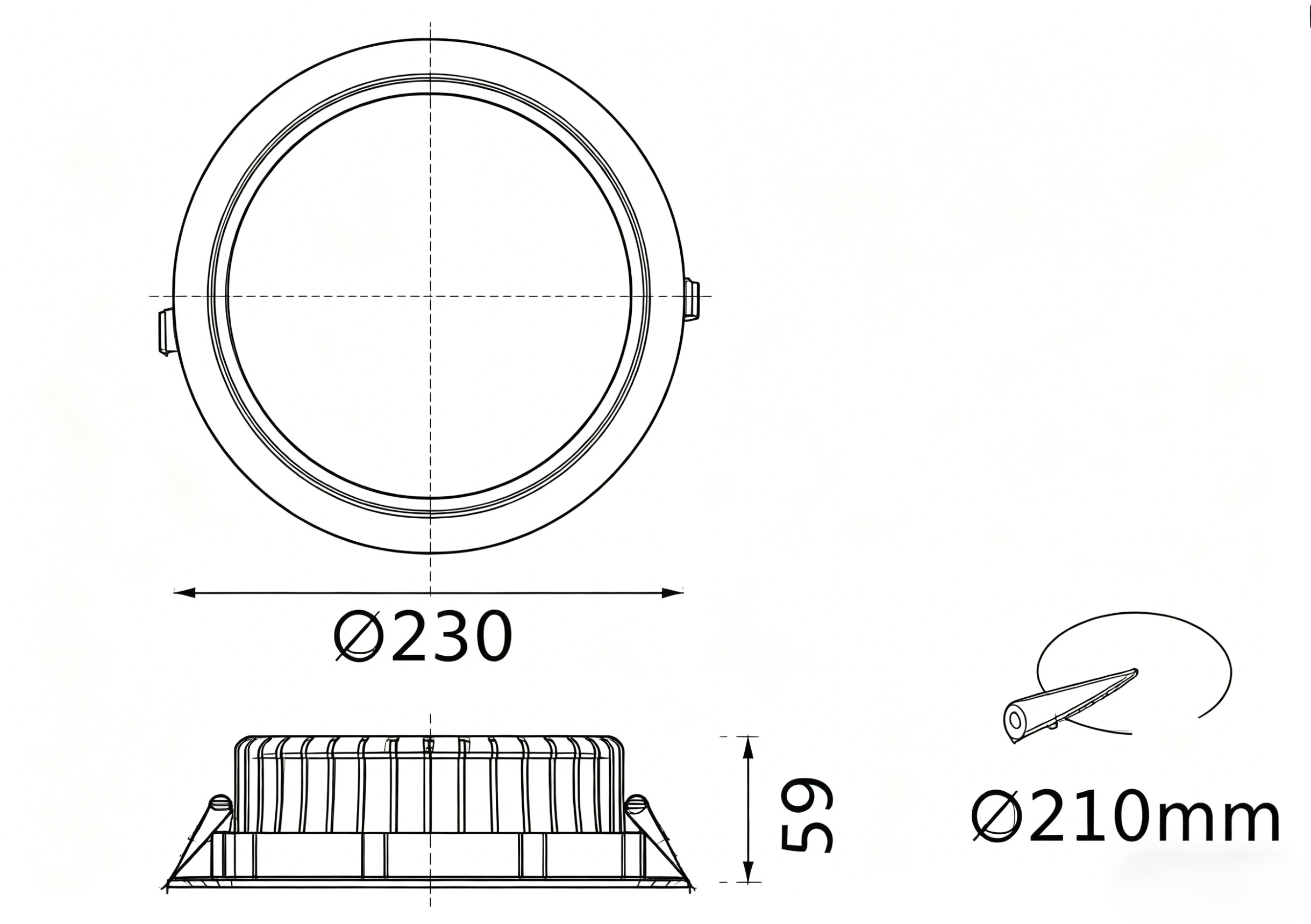

| Dimension | Ø138mm × H65mm | Ø165mm × H58mm | Ø190mm × H85mm | Ø230mm × H99mm |

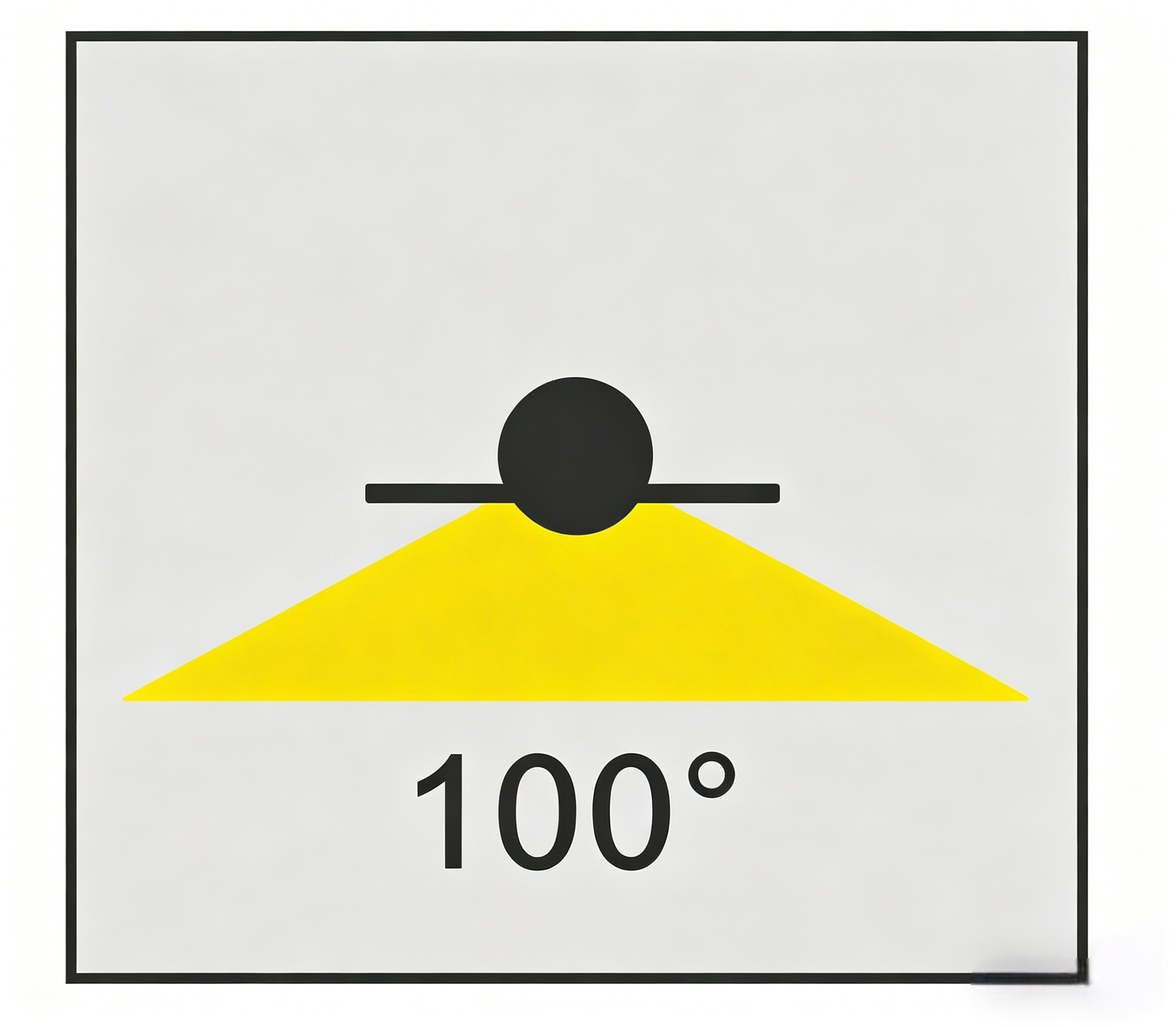

| Beam Angle | 100° Wide Beam | |||
| IP Rating | IP40 | |||
| Operating Temp. | -30℃ ~ +40℃ | |||
| Input Voltage | AC100-240V 50/60Hz | |||
| Dimming Option | 0-10V / Triac / Dali (Optional) | |||
| Driver Type | Remote Driver (Non-dimmable / Dimmable) | |||
| Housing | Aluminum Heat Sink | |||
| Certification | CE / CB | |||
| CCT & Lumen & CRI | 2700K/975lm/CRI90 3000K/1040lm/CRI90 4000K/1170lm/CRI80 5000K/1300lm/CRI70 | 2700K/1125lm/CRI90 3000K/1200lm/CRI90 4000K/1350lm/CRI80 5000K/1500lm/CRI70 | 2700K/1425lm/CRI90 3000K/1520lm/CRI90 4000K/1710lm/CRI80 5000K/1900lm/CRI70 | 2700K/1800lm/CRI90 3000K/1920lm/CRI90 4000K/2160lm/CRI80 5000K/2400lm/CRI70 |
